Design Patent Number :2009 3034 2853.3
Power Saver Pioneer
1. HOW IT WORKS
2. ROLE OF THE GAOYINENG ENERGY SAVERS
7. FITTINGS DIAGRAM DEPENDING ON THE PHASE TYPE
1: HOW IT WORKS
GaoYiNeng power saver pioneer controls and actively improves the power factor of your personal and professional devices.
When transported, electricity is subject to numerous fluctuations and losses of charge as well as to undulatory variations leading to electricity peaks unexploitable by our electrical devices. Thus, a part of the electricity delivered to our households is delivered in the form of unexploitable overcharges, yet billed: these electricity peaks make us pay and consume more.
2: ROLE OF THE GAOYINENG ENERGY SAVERS
The role of the GaoYiNeng power saver pioneer is to reduce and to stabilize the electricity used: a smart technology optimizes the voltage and the current according to the need in order to reduce the power used (kWh) according to the demand. The GaoYiNeng power saver pioneer stores the surplus of electricity during the peaks and delivers it after according to the need.
Thus by limiting the unused losses, the quantity of electricity supplied and billed for your installation is decreased!
The GaoYiNeng power saver pioneer allows you to make significant savings (from 20 to 50% on the electrical consumption) on you electricity bill without changing your usage habits!
It acts also as a tension stabilizer by storing more than 10seconds of energy and delivers thus a charge with a constant voltage even while a temporary tension peak. Thanks to this regulation the lifetime of your electrical equipments is improved.
Being just a technical and electrical optimization of your electrical installation, the GaoYiNeng power saver pioneer is fully legal.
To work GaoYiNeng power saver pioneer must be inserted between the meter of your electricity supplier and the circuit breaker of your electrical service panel (not upstream or downstream of the installation).
Inserted in an unoxidizable alloy case, GaoYiNeng power saver pioneer is made of reliable and lasting components and has a double electrical proof
Shop, house, restaurant, office, factory, cyber-cafe
Limit charge power: 45kW
Tension tolerated: 220~400 VAC, 50-60 Hz
Operating temperature: -15 to 60 Celsius degrees
3 phases (accepts 1 phase, 2 phases, 3 phases)
This device works by adjusting the power rate of the supply entering in your household. For an optimal working, it must be set up the closest possible from the entry point of your electricity source.
Even more efficient with inductive receptors (motors, transformers, fluorescent lighting…)
Protects from tension peaks
No removable parts
The installation has to be made by a professional or a qualified technician. Do not modify, open or repair the GaoYiNeng power saver pioneer by yourself: contact your reseller or distributor.
Turn the electricity supply off during the installation (TURN OFF THE CURRENT), follow the hardwires connection diagram.
The intensity applied to the earth cable must not exceed 4 ohms.
The environment must be in conjuction with the specifications of the energy saver.
Make sure that the accessories used for the connection respond to international standards.
The GaoYiNeng power saver pioneer must be:
- Properly wired to avoid wrong contacts and cabling errors
- Fixed to the wall to prevent it from moving.
- Placed in a safe environment, far from inflammable gas sources, in a dry place and protected from sun rays.

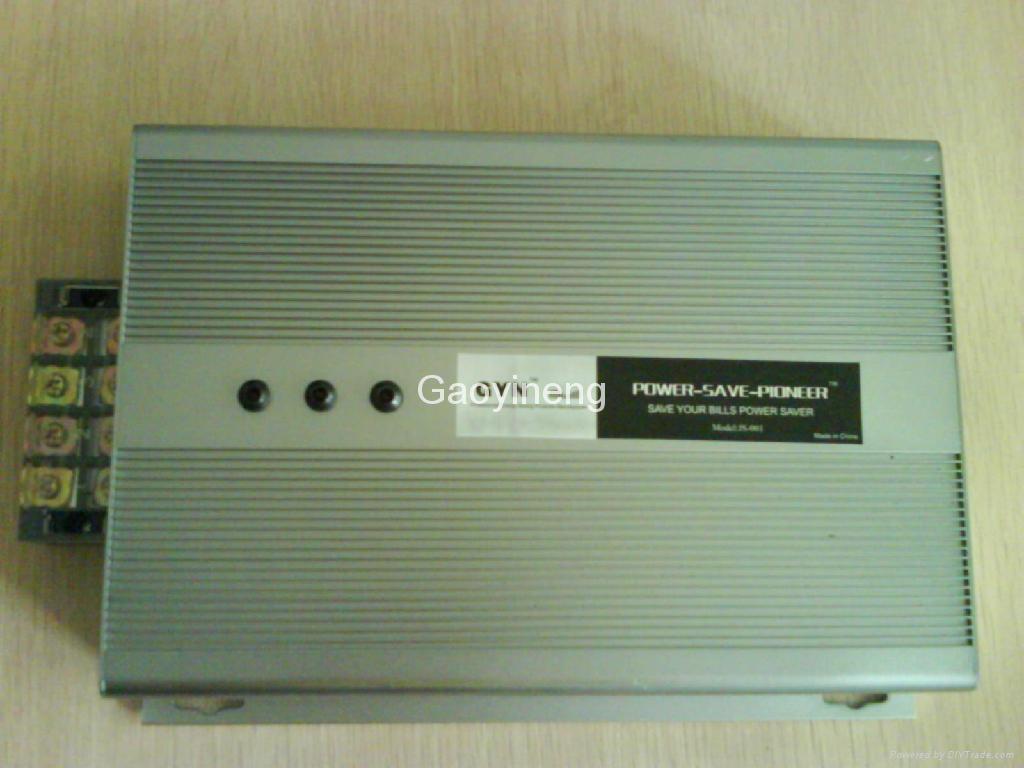

JS003( Metal cover ) 3 phase
Maximum bear power: 45KW
Each phase power: 15KW
